In the Shack ~ The HF station

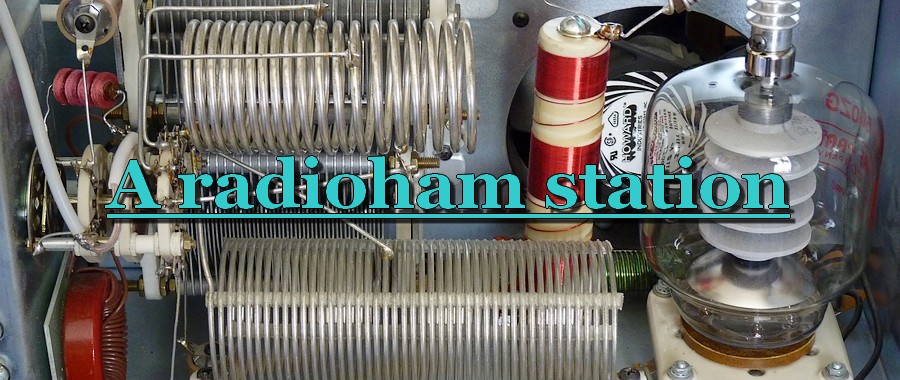

The shack contains a collector's radio station. These radios were top rated in the eighties. The station is well maintained and is working perfectly. It is still currently in use. If you are among these stations lucky enough to contact me, you will hear (for some of you with a bit of nostalgia perhaps ...) the "sounds of the eighties".

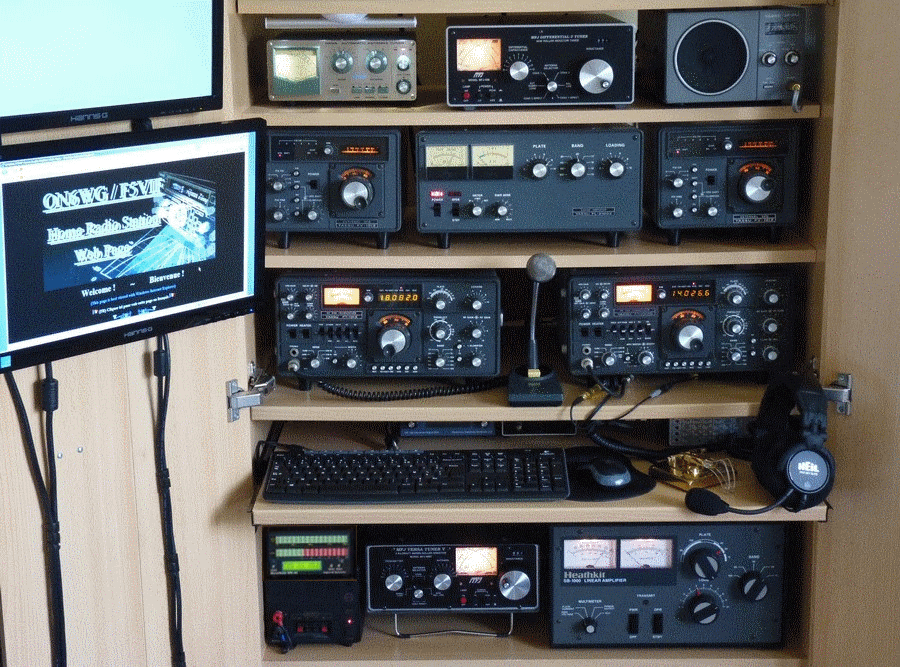

The picture below shows the F5VIF's amateur radio operating position with a point-and-see captions and so you will be able to get information about each of the devices.

TRANSCEIVER-YAESU FT-101Z MK2 WARC (1980) TRANSCEIVER-YAESU FT-101ZD MK3 WARC (1985) EXTERNAL VFO-YAESU FV-101Z (1980) EXTERNAL VFO-YAESU FV-101Z (1985) Linear amplifier-YAESU FL-2100Z (1985) High quality microphone Yaesu YD-148 original Automatic Antenna Tuner-DAIWA CNA-1001 MFJ-986 3KW Differential T-Roller Inductor Tuner Speaker with filters and SO2R connections-YAESU SP-767 Because to chase rare DX a good and comfortable listening is important, these are not vintage headphones. I chose the best currently on the market. Headphones-'HEIL PRO SET ELITE' with HC-6 mic and phase reversal feature HEIL HC-6 high-fidelity microphone UR5CDX CW dual paddle iambic Key Eridan MB model Panadapter SDR LU8EQ for FT-101Z/ZD Computer keyboard Computer mouse DD-103 Universal Digital Dial (not in use) MFJ-493 CW Memory Keyer (not in use) Computer screen for Winlog32 and WinKeyer USB, as well as CW-Skimmer Second computer screen for Panadapter and HDSDR, DXLab SpotCollector or a web DX Cluster Wavenode WN-2d High precision RF Power meter, realtime RF analysis, oscilloscope and spectrum analysis of the RF modulation 12V Power Supply MFJ-989C Versa Tuner 3KW Series-Roller Inductor Heathkit SB-1000 KW Linear Amplifier with GOP-100 grid overload protection added and original plate choke replaced by Ameritron 3 stages plate choke to cover 1.8-30 MHz)

Key        Key

Below : various changes and view of the shack when using phone transmission

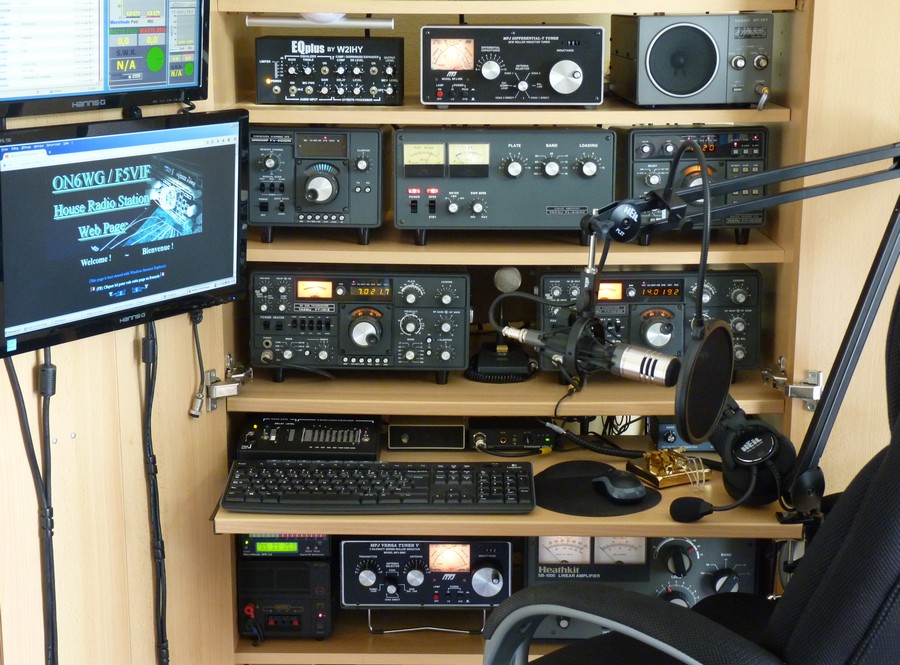

The shack when using SSB

A high quality microphone offering a wide frequency response while keeping and reproducing with accuracy the articulation of the speech is used during phone operation. The Yaesu MD-1 microphone was selected for its exceptionnal audio characteristics giving a cristal clear modulation. In addition a W2IHY 8 bands equalizer is used to customize transmit audio for personnal taste.

Key        Key

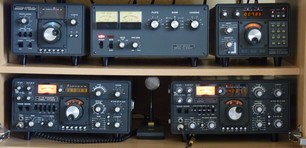

The first picture above shows the transceivers connected to the analog FV-101Z external VFO. These VFO's were replaced by digital models (second picture above and pictures just below) in order to have a similar stability as more recent transceivers. Featuring PLL synthesis and digital memories, they may be tuned in a variety of combination using the main dial, memory bank or keypad. The FV-901DM has a 100Hz step and fine tune is done with the RX/TX clarifier. The FV-901DM is especially easy to use to store and recall frequency memories while the FV-101DM can scan the band in 10 Hz steps providing a smoother tuning. They both have 3-speed scanner and two-loop PLL circuit designed to produce a clean output signal for a spurious free receiver and transmitter.


Digital VFO's


Key        Key

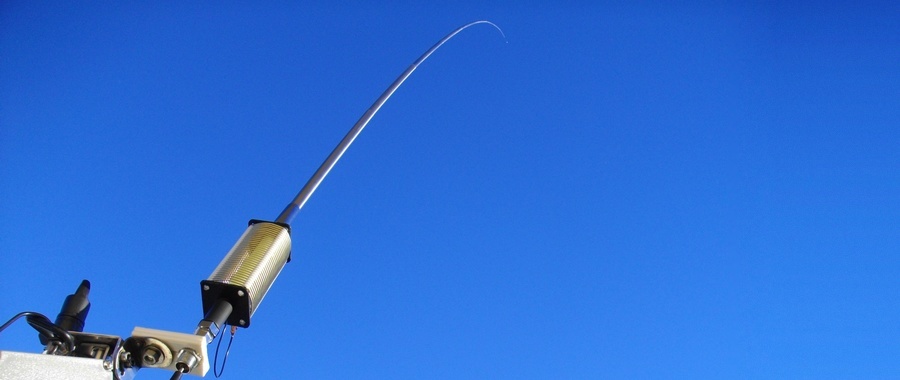

The Aerial

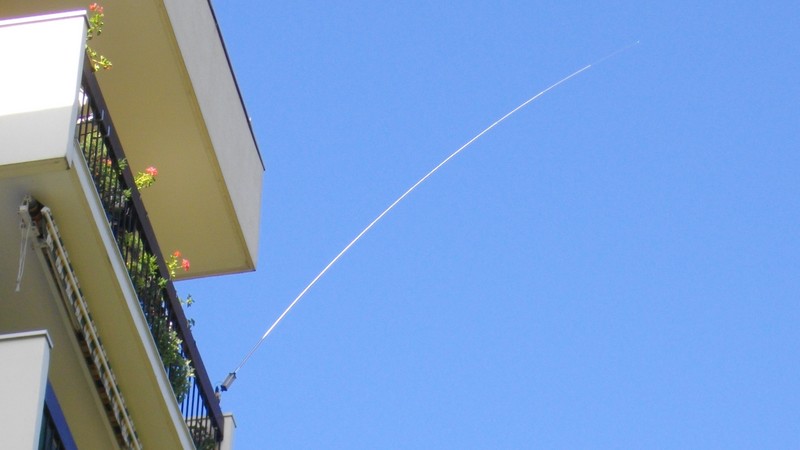

The aerial currently in use is a telescopic quarter wave vertical antenna (MFJ-1979) which is fitted at a height of 20 meters above the ground. Due to its height and its surroundings the antenna does not need radials, instead of them a tunable counterpoise is installed. A coil (MFJ-67) is added when the antenna is used on 30 and 40 meters.

Vertical Antenna on balcony

This image slider shows a selection of the finest QSL cards received for contacts with rare DXpeditions or stations situated at a very long distance. These contacts were all achieved with the antenna shown above and the counterpoise described below.

Jaw Mount

This picture shows the mast clamp "Jaw Mount" and the MFJ-1979 telescopic quarter wave antenna of five meters in length, both made of stainless steel. This is a great combination !


As it is seen in the opposite picture, a tunable counterpoise simply made with a metal tape measure has been added to tune perfectly the antenna. As the measuring tape is graduated the antenna is tuned very quickly on any band.


In order to achieve very high performance (among other advantages) a high quality 1:1 choke balun from "Balun Designs LLC" was also added to the antenna.


On the higher bands a 2:1 unun is added to provide impedance transformation and a perfect match to the transmitter. The unun is used jointly with the 1:1 choke balun. Due to the proximity of the walls and structure of the building the antenna specifications are modified. In this situation, the impedance of the antenna is determined by the position of the counterpoise which is connected at the base of the antenna. On the higher bands the tape measure counterpoise (radial) is slanted, on the other bands it is streched horizontally.

Coil MFJ-67

The MFJ-67 is an excellent air-wound Hi-Q loading coil (2 inches diameter by 6 inches length). This coil can handle 1 kW and is used on 40 and 30 meters with outstanding results. The 1:1 choke balun as well as the tunable counterpoise are also added to this antenna system.

Fritzel Coil

Sometimes another loading coil made by Fritzel is used. Enameled copper wire (#15 AWG) wound on a special polycarbonate chuck is part of this coil. The chuck contains a high voltage air capacitor and is held between two steatite discs. Attachment hardware is made of stainless steel. This coil can also handle easily 1 kW. Results seem very similar to the MFJ-67 coil. (Move the mouse over the opposite image to see a short animation)

MFJ 80m loading Coil

On 80 meters the MFJ 404-0009 coil is used to load and tune the MFJ-1979 telescopic whip. Only one third of the coil is used. Even with this short antenna, DX stations are easily worked.



An antenna analyzer was used to determine the correct position and length of the counterpoise. The impedance matching to the transmitter is nearly perfect on all bands from 80 meters to 10 meters. As a result an antenna tuner is not needed.



Current QTH since 2017 and new antenna for balcony

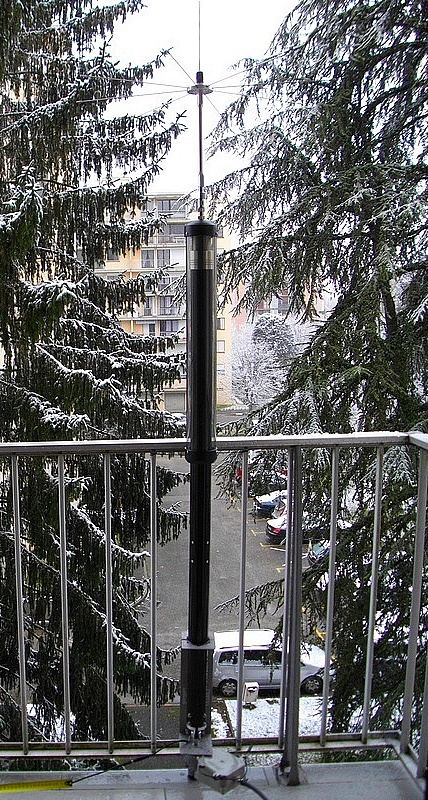

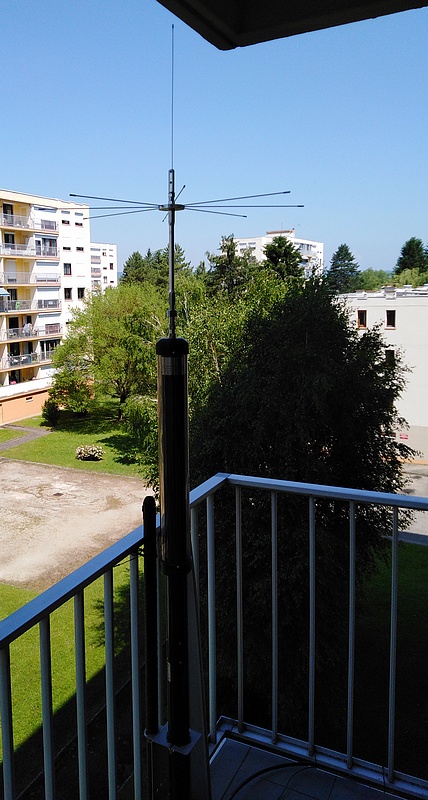

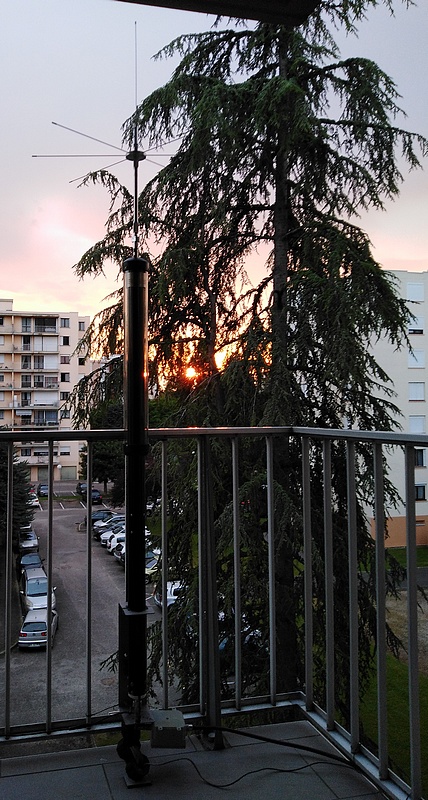

As it is not possible to use the previous vertical antenna here, it has been replaced by a high power Tarheel antenna HP-200A in version cap hat as shown in the image slider opposite. The counterpoise described above is fitted at the bottom of the antenna 15 cm over the floor of the balcony and can be folded in the horizontal plane if needed. In this configuration there is no need for impedance transformation and the SWR can be set close to 1 on any band. In the specifications the HP-200A is given to work from 3.2 till 26 MHz. In reality and perhaps due to the counterpoise, this antenna is still able to work in the first part of the 10 meters band with a 1.2 SWR.

DXing at the current QTH with the Tarheel HP-200A antenna
This image slider shows a selection of the finest QSL cards received for contacts with rare DXpeditions or stations situated at a very long distance in using the Tarheel HP-200A antenna in version cap hat as shown just above.

DXing - One definition, one goal !
Transmitting a high-frequency signal as far as it will go and working for contacts with stations in countries never logged before is one of the most exciting and satisfying aspects of Amateur Radio.
